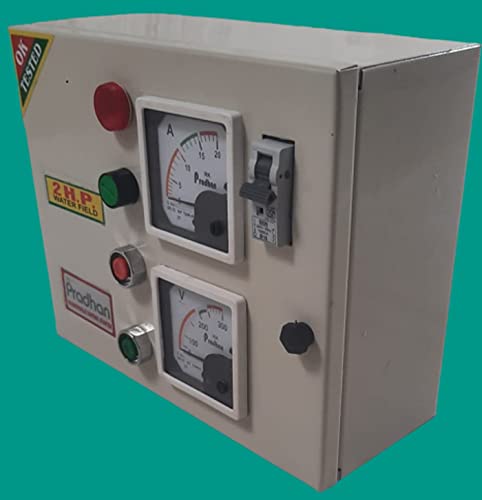

Compack Size, 2HP Single Phase Water Field Heavy Duty Submersible Pump Motor Starter Panel 240VAC

Brand: Generic

Color: Milky White

Features:

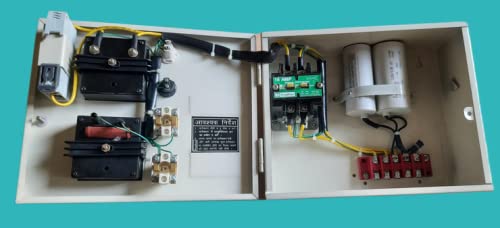

• Compack Size,PRADHAN 2.0 HP water field single phase Motor starter provided with 25 Amps copper contactor 2 pole with easy replaceable Heavy Duty fixed and moving contacts and Coil Voltage range between 180-240 Volts AC.
• Start Capacitor of rating 150-200 Mfd provid for giving initial torque to motor of 2.0HP to Start Button which charges and discharges the start capacitor unit.Run Capacitors of rating 72/100 Mfd provided for smooth running and better life of motor.
• Contactor Pickup Coil power 180V-240V AC with Heavy Bakelite Connector plate 40 Amps capacity provided for easy connection of incoming Power and outgoing Motor supply wires.

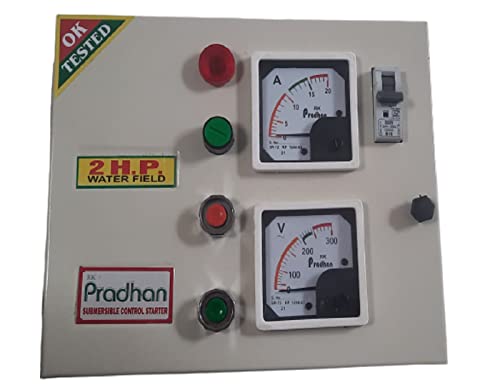

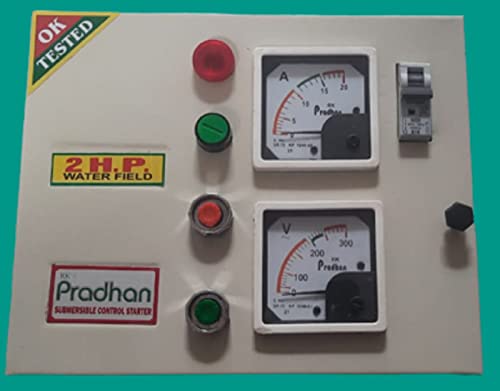

• Short Circuit protection by MCBs unit with Ammeter provided for measuring current consumed by motor pump. Voltmeter Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter.
• All product with long life with durability.

model number: COMPACK SIZE 2HP SINGLE PHASE W/F MODEL

Part Number: Compack size 2HP Single Phase W/F model

Details: Description PRADHAN 2.0 HP water field single phase Motor starter provided with 25 Amps copper contactor 2 pole with easy replaceable Heavy Duty fixed and moving contacts and Coil Voltage range between 180-240 Volts AC. Start Capacitor of rating 150-200 Mfd provid for giving initial torque to motor of 2.0HP to Start Button which charges and discharges the start capacitor unit.Run Capacitors of rating 72/100 Mfd provided for smooth running and better life of motor. Contactor Pickup Coil power 180V-240V AC with Heavy Bakelite Connector plate 40 Amps capacity provided for easy connection of incoming Power and outgoing Motor supply wires. Short Circuit protection by MCBs unit with Ammeter provided for measuring current consumed by motor pump. Voltmeter Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter. All product with long life with durability.
