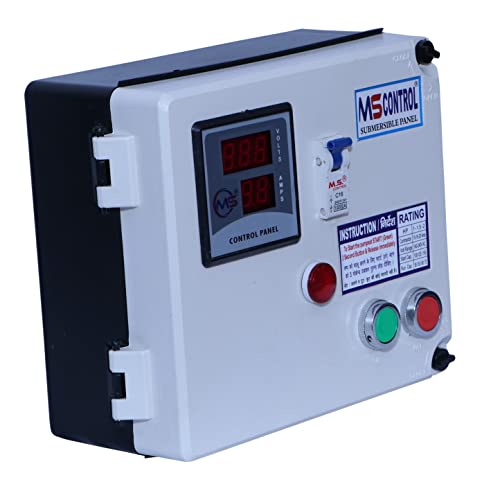

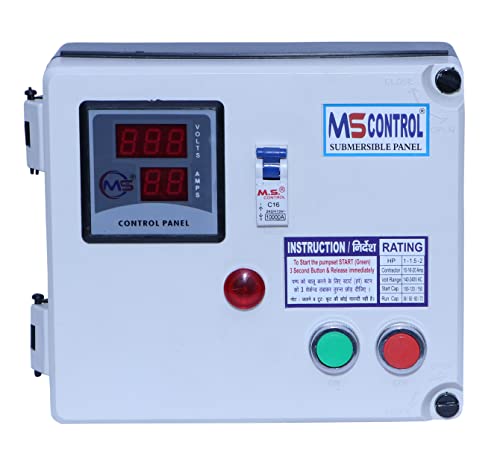

MS Control 1.5 HP Control Digital Panel For Single Phase Submersible Motor Pump/Motor Starter For Submersible motor Pump in Plastic Body…

Brand: MS CONTROL

Color: White

Features:

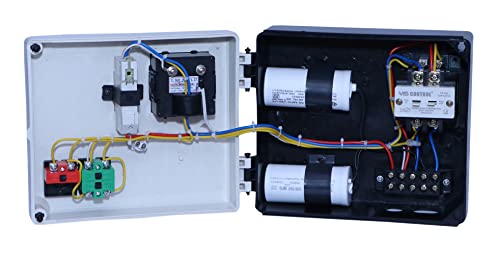

• MS CONTROL 1.5 HP Control Panel for single phase Motor Pump provided with 16 Amps BCH type Contactor 2 pole with easy replaceable heavy duty fixed and moving contacts and Coil Voltage range between 140-220 Volts with easy replacement of coil.
• Switching device provided-Single Pole ( Automatic MCB ) Miniature Circuit Breaker [MCB-C Series-Inductive Load] of capacity 16 Amps which ensures protection against short circuit.
• Start Capacitors of rating 120-150 Mfd provided for giving initial torque to motor of 1.5 HP connected to Start Button which charges and discharges the start capacitor. Bullet Point
• Run Capacitors of rating 60 Mfd provided for smooth running and better life to motor of 1.5 HP connected to Neon bulb indication for showing motor running condition.

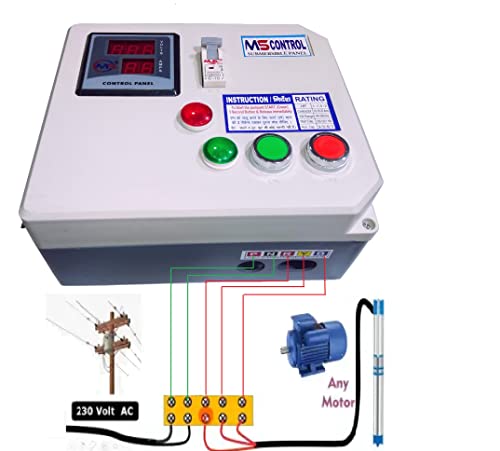

• Ammeter ( digital )provided with for measuring current consumed by motor pump. Voltmeter ( digital ) Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter. Heavy Bakelite Connectors [30 Amps] capacity provided for easy connection of incoming Power and outgoing Motor supply wires. [Please see full PRODUCT DESCRIPTION below]

Details: M S India single phase water filled submersible pumps.Provided panel ON/OFF indicator along with ON/OFF switch AND MCB for Overload & short circuit protection with ( BCH 2 pole Contactor) switching device thermal overload relay ensure overload protection and manual rest facility. 16 Amps contactor and start capacitor provided as per Horsepower (120-150 Mfd for 1.5 HP ) for smooth running of pump and better life run capacitor as per Horsepower (60 Mfd for 1.5 hp ) running of pump and better life. Panel provide with features/ indications as pumoset on voltage reading start button, stop button, 16 Amp MCB and Amp meter and volt metre etc.Our products are ideally suitable for water supply in houses, office, hospital, factories hotel and building commercials centre all phase with water tanks overhead/ underground.

Package Dimensions: 10.6 x 9.1 x 5.3 inches
