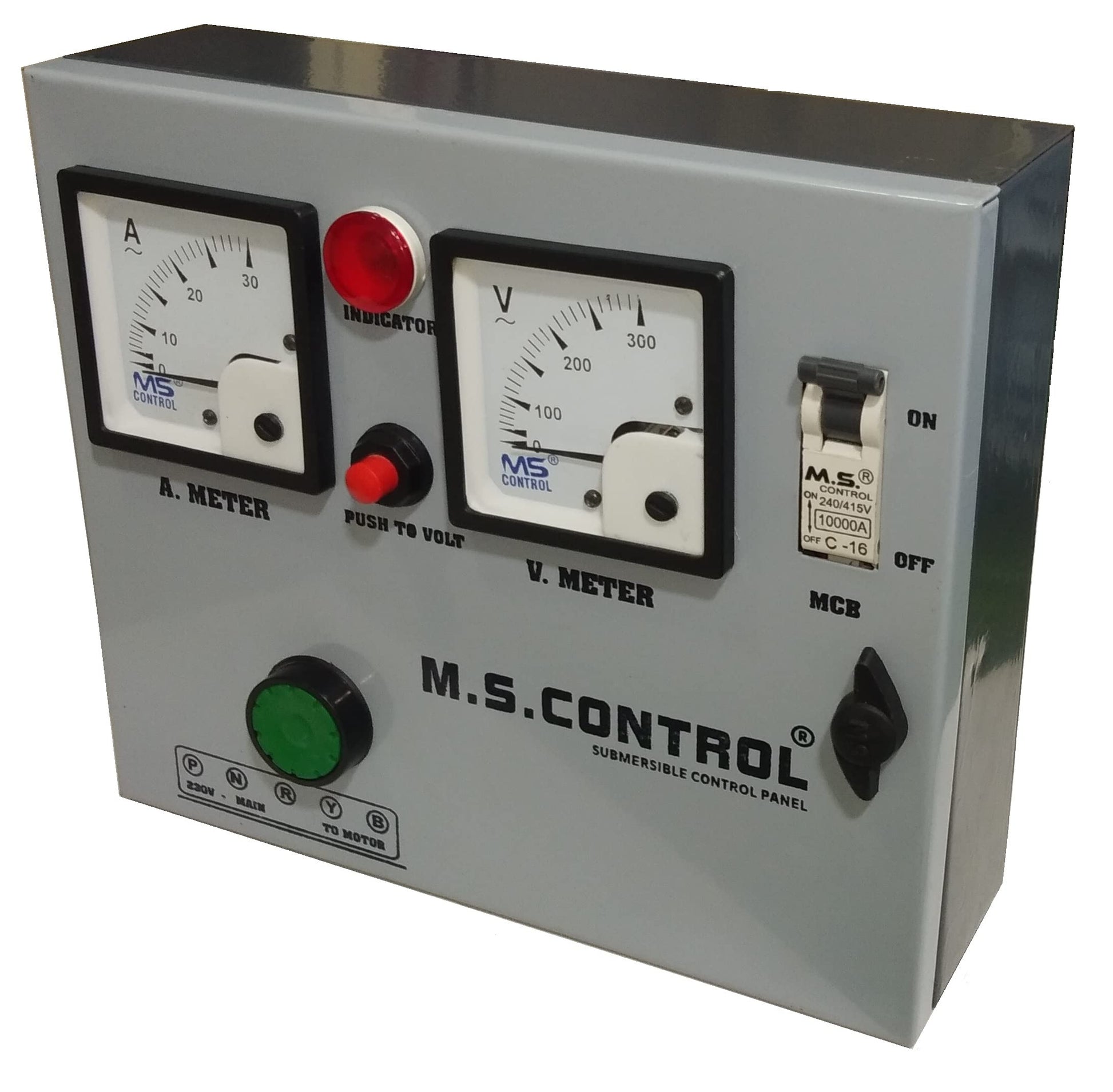

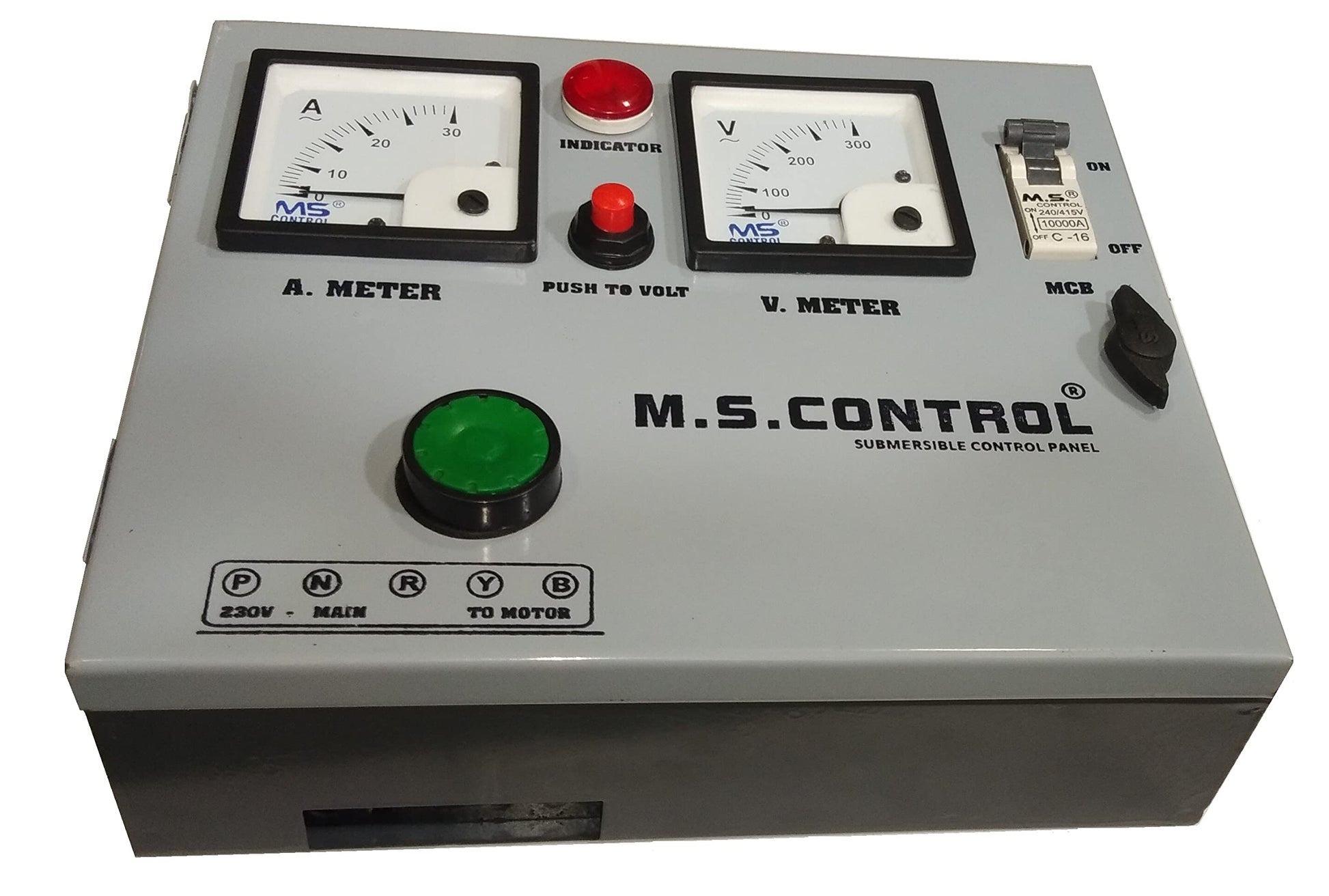

MS CONTROL 1 HP Control Panel for Single Phase Submersible Open-well Motor Pump (Multicolour)

Brand: MS CONTROL

Color: Multicolour

Features:

• Single Pole Miniature Circuit Breaker [MCB-C Series-Inductive Load] of capacity 16 Amps
• Thermal Overload Relay [Equipment Circuit Breaker - ECB] ensures Overload Protection
• manual reset facility [Range ►16 Amps for 1 HP Motor Pump]
• Run Capacitors of rating 50 Mfd

Details: Switching device provided-Single Pole Miniature Circuit Breaker [MCB-C Series-Inductive Load] of capacity 16 Amps which ensures protection against short circuit. Thermal Overload Relay [Equipment Circuit Breaker - ECB] ensures Overload Protection and manual reset facility [Range ►16 Amps for 1 HP Motor Pump] saves the pump from overheating and burning of winding. Run Capacitors of rating 50 Mfd provided for smooth running and better life to motor of HP connected to Neon bulb indication for showing motor running condition. Ammeter provided with for measuring current consumed by motor pump. Voltmeter provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter.Heavy Bakelite Connectors [30 Amps] capacity provided for easy connection of incoming Power and outgoing Motor supply wires. [Please see full PRODUCT DESCRIPTION below]
