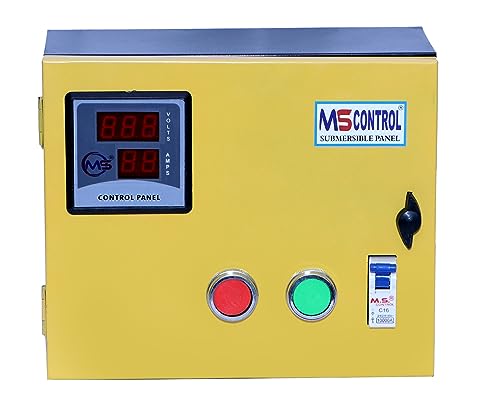

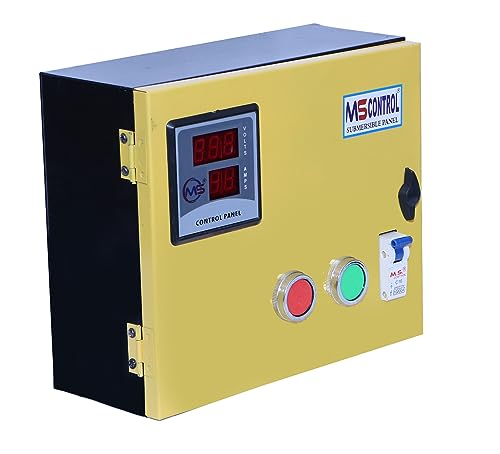

MS Control 2 HP Digital Control Panel For Single Phase Submersible Motor Pump/Motor Starter For Submersible motor Pump (2 HP Digital)

Brand: MS CONTROL

Color: Multicolour

Features:

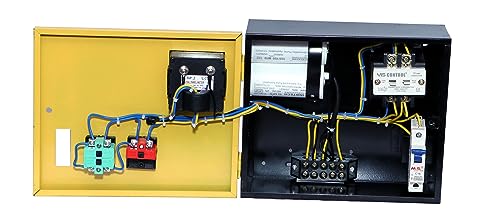

• MS CONTROL 2. HP Control Panel for single phase Motor Pump provided with 25 Amps BCH type Contactor 2 pole with easy replaceable heavy duty fixed and moving contacts and Coil Voltage range between 140-220 Volts with easy replacement of coil.
• Switching device provided-Single Pole ( Automatic MCB ) Miniature Circuit Breaker [MCB-C Series-Inductive Load] of capacity 25 Amps which ensures protection against short circuit.
• Start Capacitors of rating 150-200 Mfd provided for giving initial torque to motor of 2 HP connected to Start Button which charges and discharges the start capacitor.
• Run Capacitors of rating 72 Mfd provided for smooth running and better life to motor of 2. HP connected to Neon bulb indication for showing motor running condition.
• Ammeter ( digital )provided with for measuring current consumed by motor pump. Voltmeter ( digital ) Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter. Heavy Bakelite Connectors [40 Amps] capacity provided for easy connection of incoming Power and outgoing Motor supply wires. [Please see full PRODUCT DESCRIPTION below]

Details: MS Control Switching device provided-Single Pole Miniature Circuit Breaker [ Trip MCB] of capacity 25 Amps which ensures protection against short circuit. Thermal Overload Relay saves the pump from overheating and burning of winding. Start Capacitors of rating (150-200 )Mfd provided for giving initial torque to motor of 2. HP connected to Start Button which charges and discharges the start capacitor. Run Capacitors of rating (72 Mfd ) provided for smooth running and better life to motor of 2 HP connected to Neon bulb indication for showing motor running condition. Ammeter provided with for measuring current consumed by motor pump. Voltmeter provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter.Heavy Bakelite Connectors [25 Amps] capacity provided for easy connection of incoming Power and outgoing Motor supply wires( 1.5 mm And 2.5 mm). [Please see full PRODUCT DESCRIPTION below]
