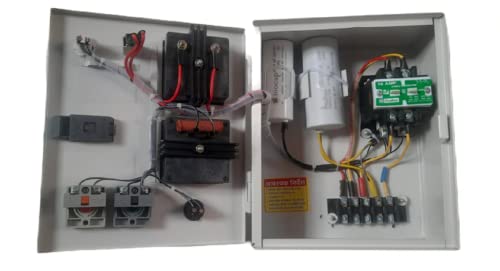

PRADHAN 1 HP Single Phase Heavy Duty (Water+OIL) Field Condenser & Contactor based Auto cut-off Submersible Pump Motor Starter Panel 180-240V AC

Brand: Genric

Color: MILKY WHITE

Features:

• PRADHAN 1.0 HP water field single phase Motor starter provided with 16 Amps copper contactor 2 pole with easy replaceable Heavy Duty fixed and moving contacts and Coil Voltage range between 120-240 Volts AC.
• Start Capacitor of rating 120-150 Mfd provide for giving initial torque to motor of 1.0HP to Start Button which charges and discharges the start capacitor unit.Run Capacitors of rating 50 Mfd provided for smooth running and better life of motor.
• Overload protection by Reset unit with Ammeter provided for measuring current consumed by motor pump. Voltmeter Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter.
• Contactor Pickup Coil power 180V-240V AC with Heavy Bakelite Connector plate 30 Amps capacity provided for easy connection of incoming Power and outgoing Motor supply wires.
• Using Mild steel enclosure body for protection of internal components from whether & external trouble, All using products goods Long life durability with 100% trusted customer satisfaction on amazon.

model number: 1HP W/F RESET MODEL

Part Number: 1P- W/F RESET 240V

Details: Description PRADHAN 1.0 HP water field single phase Motor starter panel provided with 16 Amps NHD copper contactor 2 pole with easy replaceable Heavy Duty fixed and moving contacts and Coil Voltage range between 120-240 Volts AC. Start Capacitor of rating 120-150 Mfd provide for giving initial torque to motor of 1.0HP to Start Button which charges and discharges the start capacitor unit.Run Capacitors of rating 50 Mfd provided for smooth running and better life of motor. Overload protection by Reset unit with Ammeter provided for measuring current consumed by motor pump. Voltmeter Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter. Contactor Pickup Coil power 180V-240V AC with Heavy Bakelite Connector plate 30 Amps capacity provided for easy connection of incoming Power and outgoing Motor supply wires. Using Mild steel enclosure body for protection of internal components from whether & external trouble, All using products goods Long life durability with 100% trusted customer satisfaction on Amazon.
