Madhav Control Panel

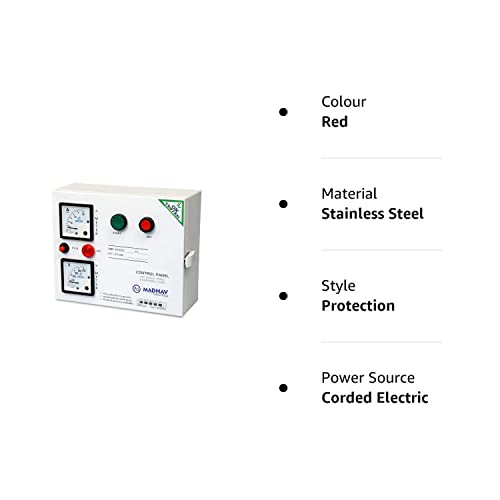

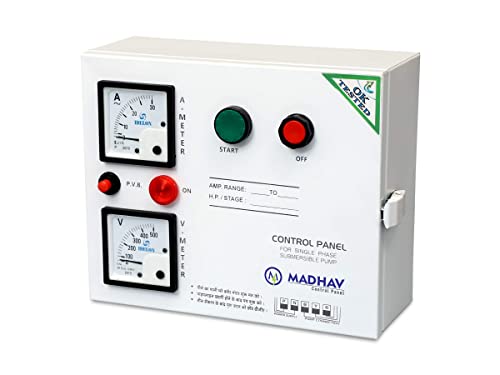

Madhav Control Panel 1 HP Single Phase Submersible Pump Control Panel/Starter (1 HP)

Madhav Control Panel 1 HP Single Phase Submersible Pump Control Panel/Starter (1 HP)

Brand: Madhav Control Panel

Color: Red

Features:

  • Overload Rellay : 9 x 14
  • Motor Starting Capacitor: 120-150 MFD
  • Motor Running Capacitor: 25+36 MFD
  • Coil Voltage: 220-240V
  • Contactor Type: MK1

model number: MCP-1HP

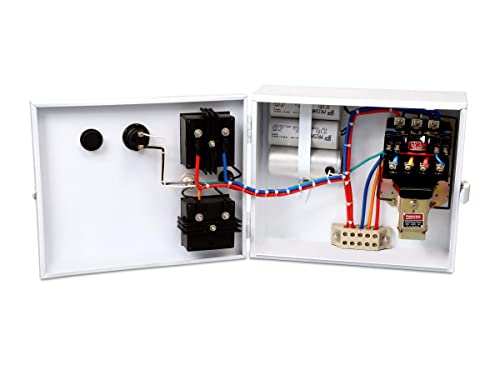

Details: Overload Rellay : 9 x 14 ,contactor Type: MK1, Motor Starting Capacitor: 120-150 MFD , Motor Running Capacitor: 25+36 MFD , Coil Voltage: 220-240V , 50Hz Wiring: 1.0 sq.mm to 2.5 sq. mm , Submersible Pump Starter for 1 HP. Pump Control Panel for Single Phase Water Filled Submersible Pumpset for start and protection from overload.Start Capacitors provided for starting torque as per Horsepower of Motor Pump. Run Capacitors provided as per Horsepower for smooth running of pumps and better life. Start Button provided which charges and discharges the start capacitor. Voltmeter Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter. ADVANTAGES Start and save of pumpset done. Motor and Supply wire directions given for easy connections. Connector terminals for easy connection Best quality product Wires (ISI) used indicating colors Red (R), Yellow (Y) and Blue (B). Every end of wire soldered / crimped by terminals to avoid sparking.

Package Dimensions: 12.0 x 9.7 x 5.6 inches
