SWADESI KRAFTS :- CD 170 TYPE 1.5HP Petrol Kerosene Engine (3000 RPM)

Brand: SWADESI KRAFTS

Color: GREEN

Features:

• The engine power is 1.5Hp and speed is 3000 RPM ,Fuel Capacity-0 .6Ltr/Hr ,Manual Starting

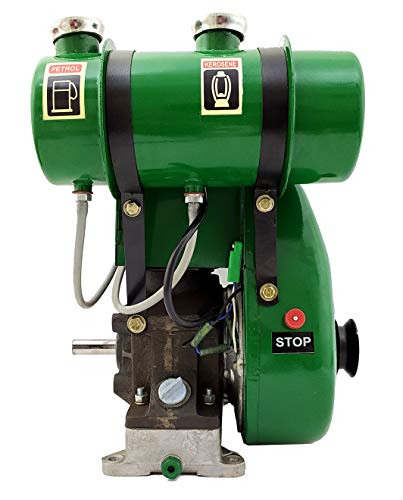

• It has two separate tanks for kerosene and petrol. The engine is started with the help of pulling rope manually

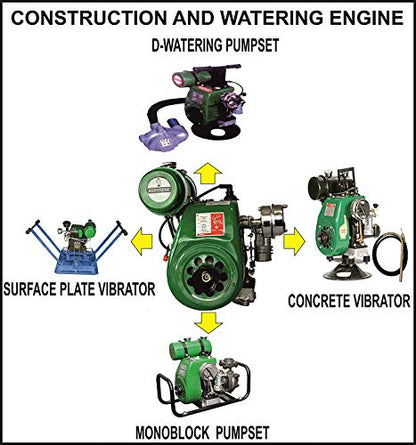

• Used for cd-170 engine, farming, concrete vibrator, dewatering, surface plate vibrator, pumpset 2X2 ,fogging , sugarcane crush

• How to use manual this engine is prescribly described in product description


model number: CD 170

Part Number: K11

Details: Description *Brand offer 12-month free service *description of keywords as follows:- *stop button: used to stop the engine. *hand rope pully: this is the pully in which the starting rope tie and pull that rope out with force *start, stop & run switch: (a)stop-for stopping engine (b)start-for starting engine with petrol only (c ) –for switching the running engine from petrol to kerosene(as engine can’t start only with the help of kerosene) Note:- engine should always start from the start side that is petrol side only. *speed adjusting screw: to modify the speed of the engine.(only by professinals) *fuel removing screw: to remove fuel, check the fuel flow or to remove kerosine from the carburettor. *separate nozzle of tanks: to insert kerosine or petrol to their respective tanks. *oil adding and level gauge(l-h): to insert engine oil like hp(laal khoda), etc. And checking the engine oil level(low-high) *oil removing screw: to remove the dirty engine oil and add new one. *carburettor choke: for the easy start of the engine (only by professionals) *dimensions(size) of engine is 24''x24''x18'' It is a two fuel engine petrol & kerosine
